WOLFTOOTH

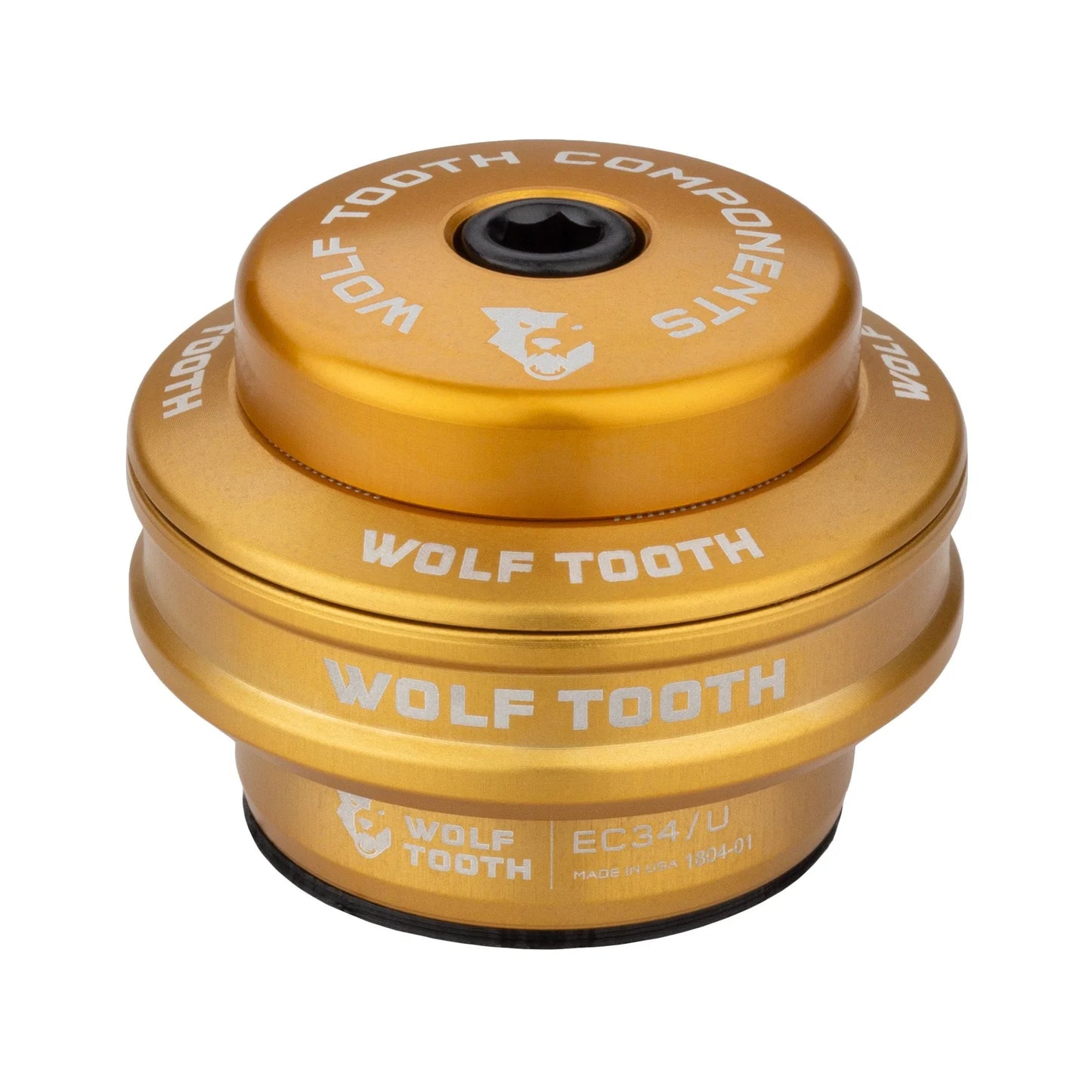

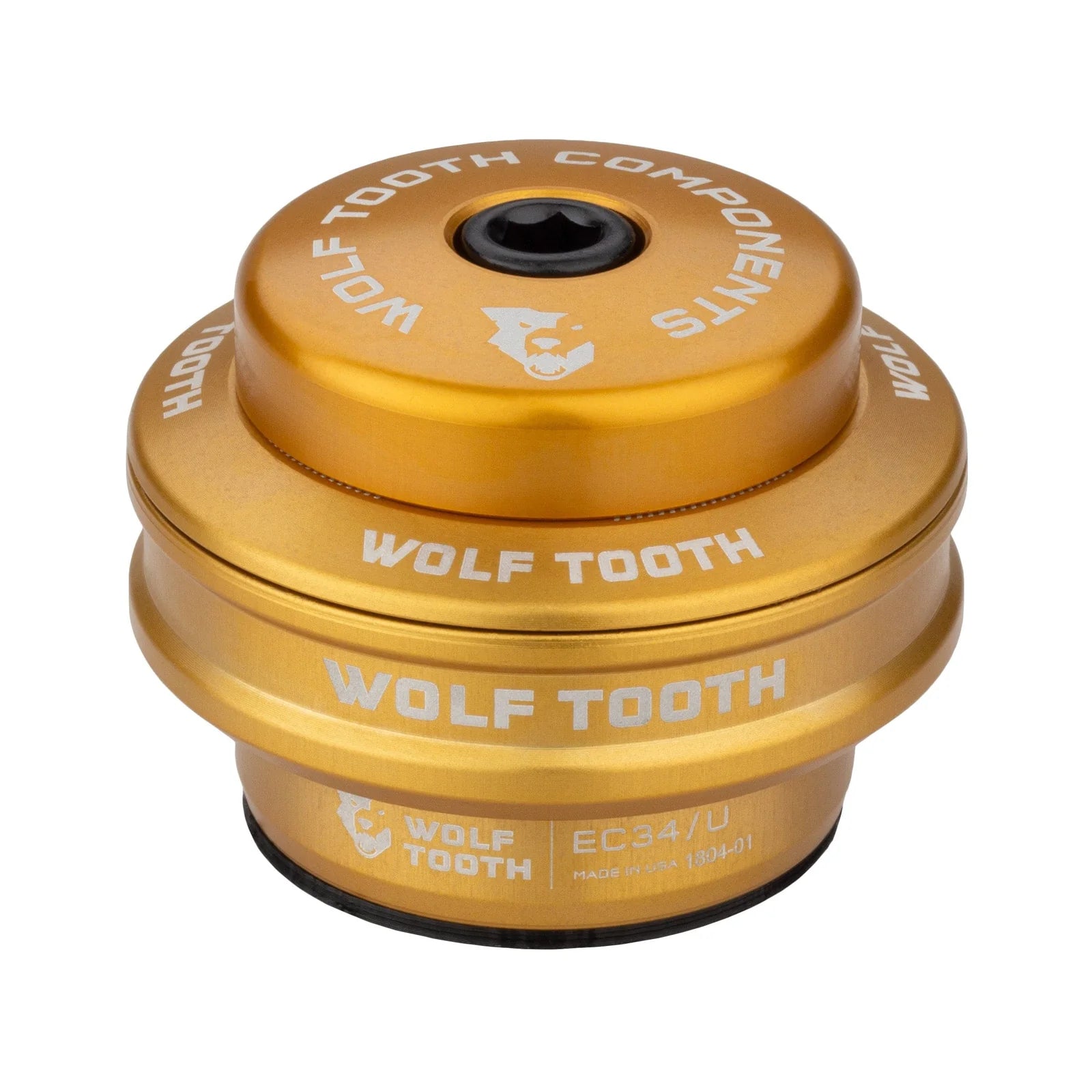

Top Cup for External Headset WOLF TOOTH PREMIUM 1"1/8 EC34 Stack 16 mm Gold

Réf. fabricant : EC34U-5MM-GLD
Designed for frames equipped with an external headset, the top cup WOLF TOOTH PREMIUM EC34 combines premium craftsmanship with excellent protection against the elements.... Read more

Recommanded price* : 89,99 €

79,99 €
79,99 €
View full details

Description

Designed for frames equipped with an external headset, the top cup WOLF TOOTH PREMIUM EC34 combines premium craftsmanship with excellent protection against the elements. Machined in the USA from 6061 aluminium of aeronautical quality, it offers an excellent balance between lightness, rigidity and durability.

This EC34/28.6 version with 16 mm Stack integrates a sealed Enduro stainless bearing with a lifetime warranty. Its triple sealing system, comprising an O-ring around the steerer tube and a specific upper seal, effectively limits water and dust ingress to extend the life of the headset.

Supplied with an ultralight cover integrating a spacer, an aluminium bolt and a star nut, this cup is designed for 1"1/8 aluminium or steel steerer tubes. For a carbon steerer, a compression expander is required.

Ref: 16037045830012

Informations techniques

Type: Upper cup for external headset
Position: Upper
S.H.I.S. Standard: EC34/28.6
Height (Stack): 16 mm (5 mm top cap)
Compatible with fork steerer: 1"1/8 (28.6 mm)
Compatible with head tube: 34 mm inner diameter
Construction: CNC machined aeronautical-grade 6061 aluminium
Bearing: Sealed stainless steel Enduro bearing (Stainless Steel Sealed Bearing)
Sealing:
Triple protection against ingress
O-ring around the steerer
Specific moulded upper seal protecting the bearing
Top cap: Ultra-lightweight with integrated spacer
Cap bolt: Aluminium
Star nut: Included (for steel or aluminium steerers only)
Carbon steerer: Compression expander required (not included)
Bearing angle: 36° x 45°
Top cap bolt torque: 2 to 3 Nm
Colour: Available in several anodised finishes
Manufacturing: Made in USA
Warranty: Lifetime warranty on the Enduro stainless steel bearing
Sold individually (upper cup only)
;
