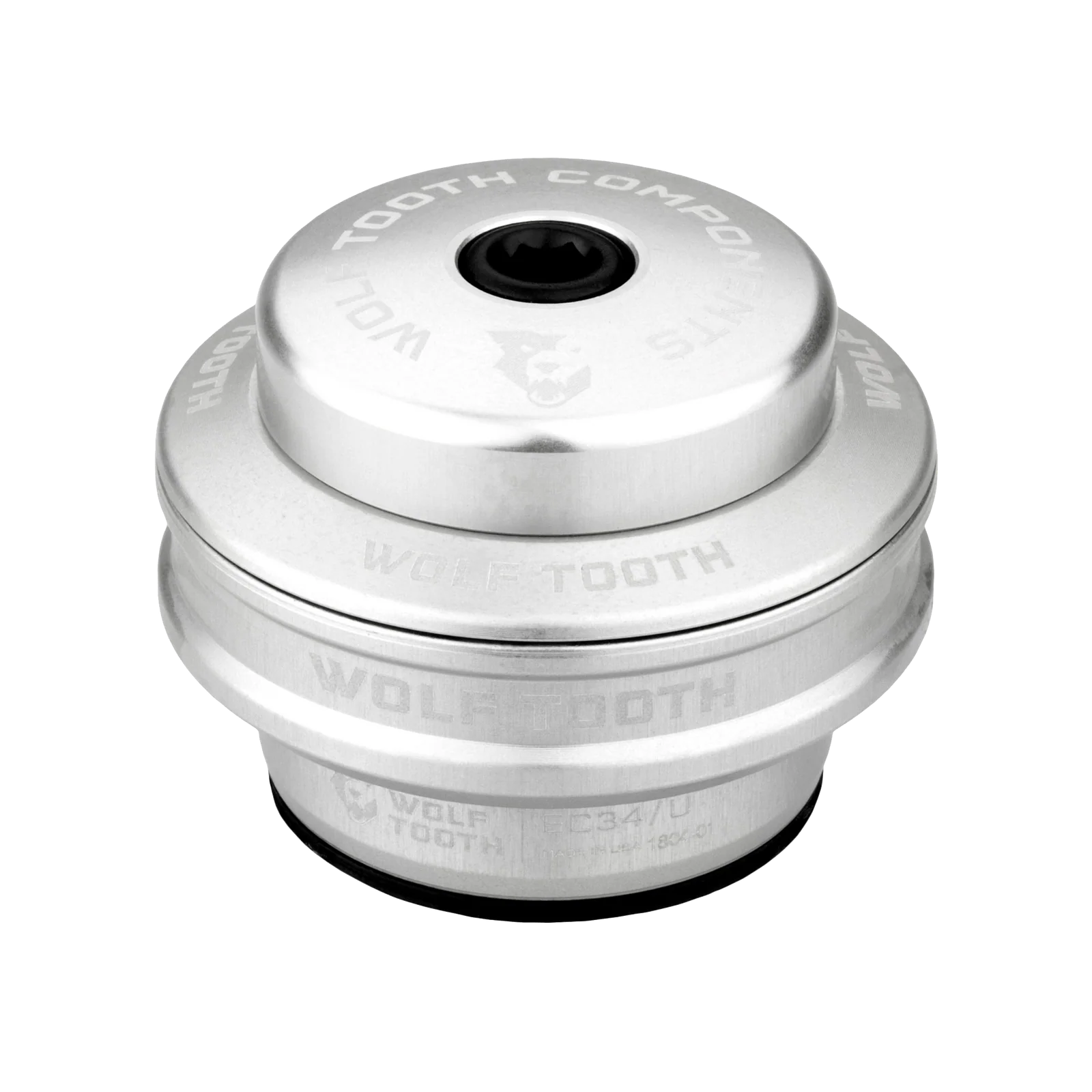

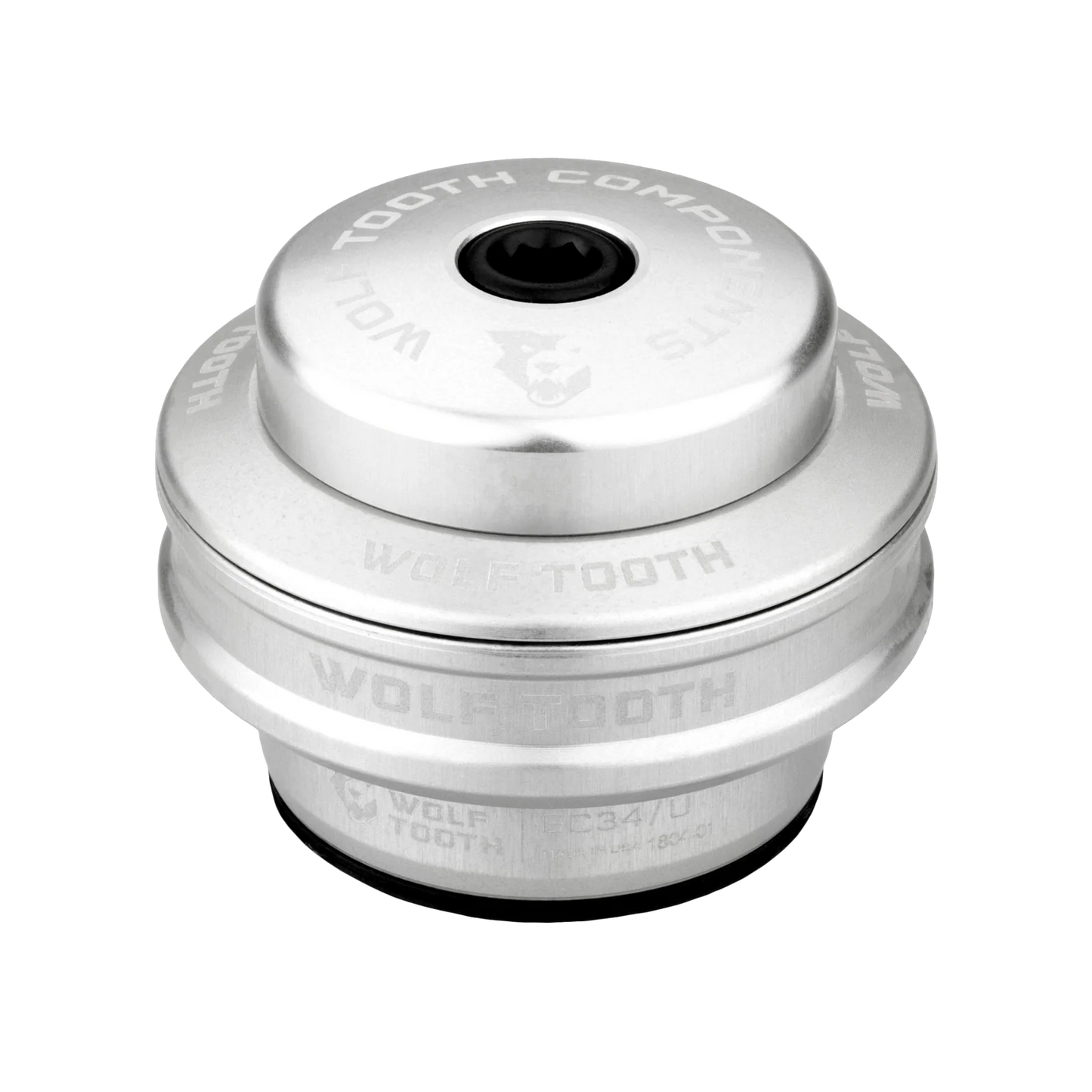

WOLF TOOTH PREMIUM Upper Cup for External Headset 1"1/8 EC34 Stack 16 mm Silver

Réf. fabricant : EC34U-5MM-RSIL
Designed for frames equipped with an external headset, the upper cup WOLF TOOTH PREMIUM EC34 combines premium craftsmanship with excellent protection against the elements.... Read more

Recommanded price* : 89,99 €

79,99 €
79,99 €
View full details

Description

Designed for frames equipped with an external headset, the upper cup WOLF TOOTH PREMIUM EC34 combines premium craftsmanship with excellent protection against the elements. Machined in the USA from aerospace-grade 6061 aluminium, it offers an excellent balance between weight, stiffness and durability.

This EC34/28.6 version with Stack 16 mm integrates a sealed Enduro stainless bearing with a lifetime guarantee. Its triple seal system, comprising an O-ring around the steerer and a specific upper seal, effectively limits water and dust ingress to extend the headset's service life.

Supplied with an ultralight top cap integrating a spacer, an aluminium bolt and a star nut, this cup is intended for 1"1/8 aluminium or steel steerer tubes. For a carbon steerer, a compression expander is required.

Ref: 16037048091004

Informations techniques

Type: External headset upper cup
Position: Upper
S.H.I.S. Standard: EC34/28.6
Height (Stack): 16 mm (5 mm top cap)
Compatible with fork steerer: 1"1/8 (28.6 mm)
Compatible with head tube: 34 mm inner diameter
Construction: CNC machined aeronautical grade 6061 aluminium
Bearing: Sealed stainless steel Enduro bearing (Stainless Steel Sealed Bearing)
Sealing:
Triple protection against water ingress
O-ring around the steerer
Specific moulded upper seal protecting the bearing
Top cap: Ultra-light with integrated spacer
Top cap bolt: Aluminium
Star nut: Included (for steel or aluminium steerers only)
Carbon steerer: Compression expander required (not included)
Bearing angle: 36° x 45°
Top cap bolt torque: 2 to 3 Nm
Colour: Available in several anodised finishes
Manufacturing: Made in USA
Warranty: Lifetime warranty on the Enduro stainless steel bearing
Sold individually (upper cup only)
;
