WOLFTOOTH

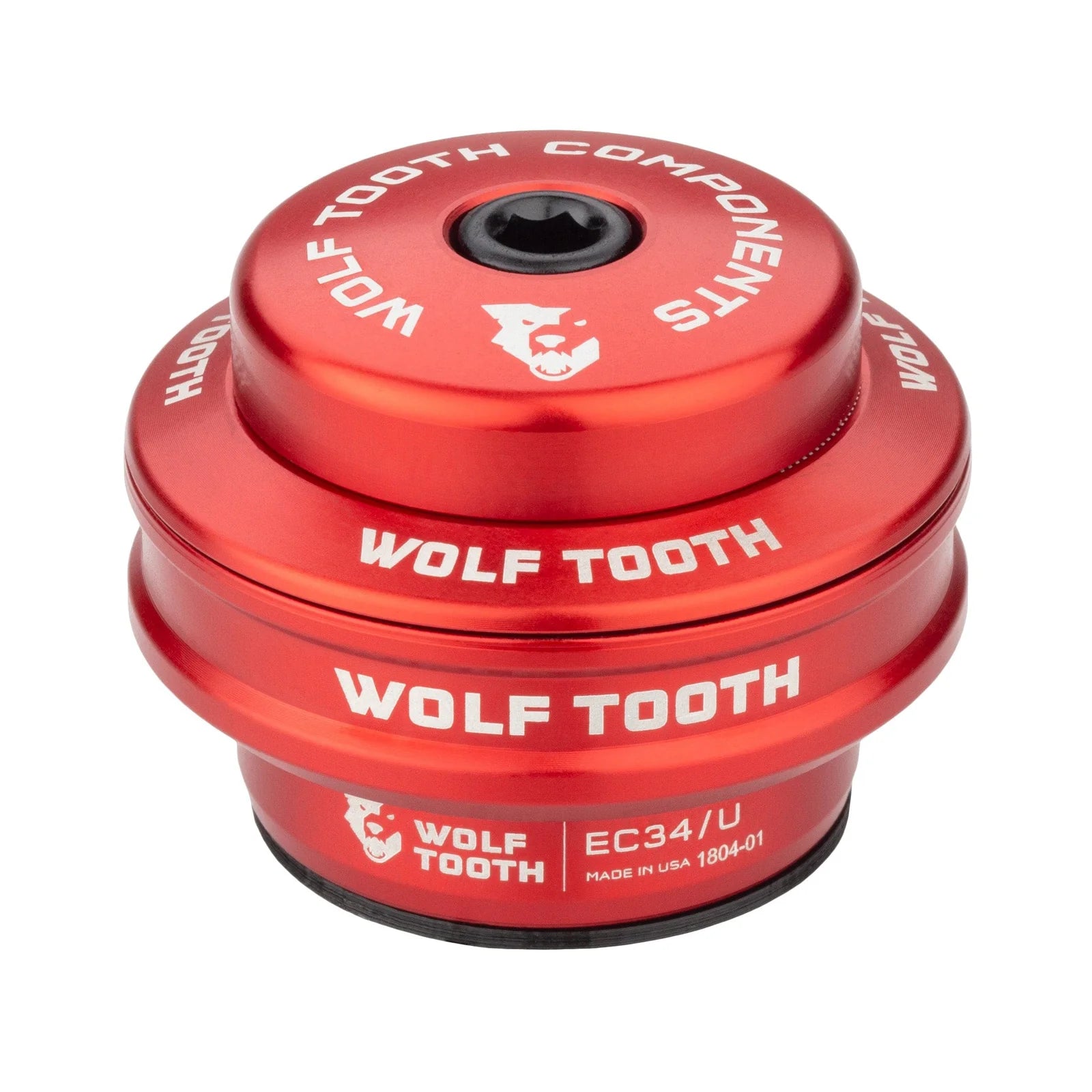

Upper Cup for External Headset WOLF TOOTH PREMIUM 1"1/8 EC34 Stack 16 mm Red

Réf. fabricant : EC34U-5MM-RED
Designed for frames equipped with an external headset, the upper cup WOLF TOOTH PREMIUM EC34 combines premium craftsmanship and excellent protection against the elements.... Read more

Recommanded price* : 89,99 €

79,99 €
79,99 €
View full details

Description

Designed for frames equipped with an external headset, the upper cup WOLF TOOTH PREMIUM EC34 combines premium craftsmanship and excellent protection against the elements. CNC machined in the USA from aerospace-grade 6061 aluminium, it offers an excellent balance between weight, stiffness and durability.

This EC34/28.6 version with 16 mm Stack integrates a sealed Enduro stainless steel bearing backed by a lifetime warranty. Its triple seal system, comprising an O-ring around the steerer and a specific upper seal, effectively limits water and dust ingress to extend the lifespan of the headset.

Supplied with an ultra-lightweight top cap integrating a spacer, an aluminium bolt and a star nut, this cup is intended for 1"1/8 aluminium or steel steerers. For a carbon steerer, a compression expander is required.

Ref: 16037047894396

Informations techniques

Type: Upper headset cup for external headset
Position: Upper
S.H.I.S. Standard: EC34/28.6
Height (Stack): 16 mm (5 mm cap)
Compatible with fork steerer: 1"1/8 (28.6 mm)
Compatible with head tube: 34 mm inner diameter
Construction: CNC machined aeronautical grade 6061 aluminium
Bearing: Sealed stainless steel Enduro bearing (Stainless Steel Sealed Bearing)
Sealing:
Triple protection against ingress
O-ring around the steerer
Specific moulded upper seal protecting the bearing
Top cap: Ultra-lightweight with integrated spacer
Cap bolt: Aluminium
Star nut: Included (for steel or aluminium steerers only)
Carbon steerer: Compression expander required (not included)
Bearing angle: 36° x 45°
Cap bolt torque: 2 to 3 Nm
Colour: Available in several anodised finishes
Manufacturing: Made in USA
Warranty: Lifetime warranty on the Enduro stainless steel bearing
Sold individually (upper cup only)
;

Informations prix

*Supplier recommended retail price in February 2024
