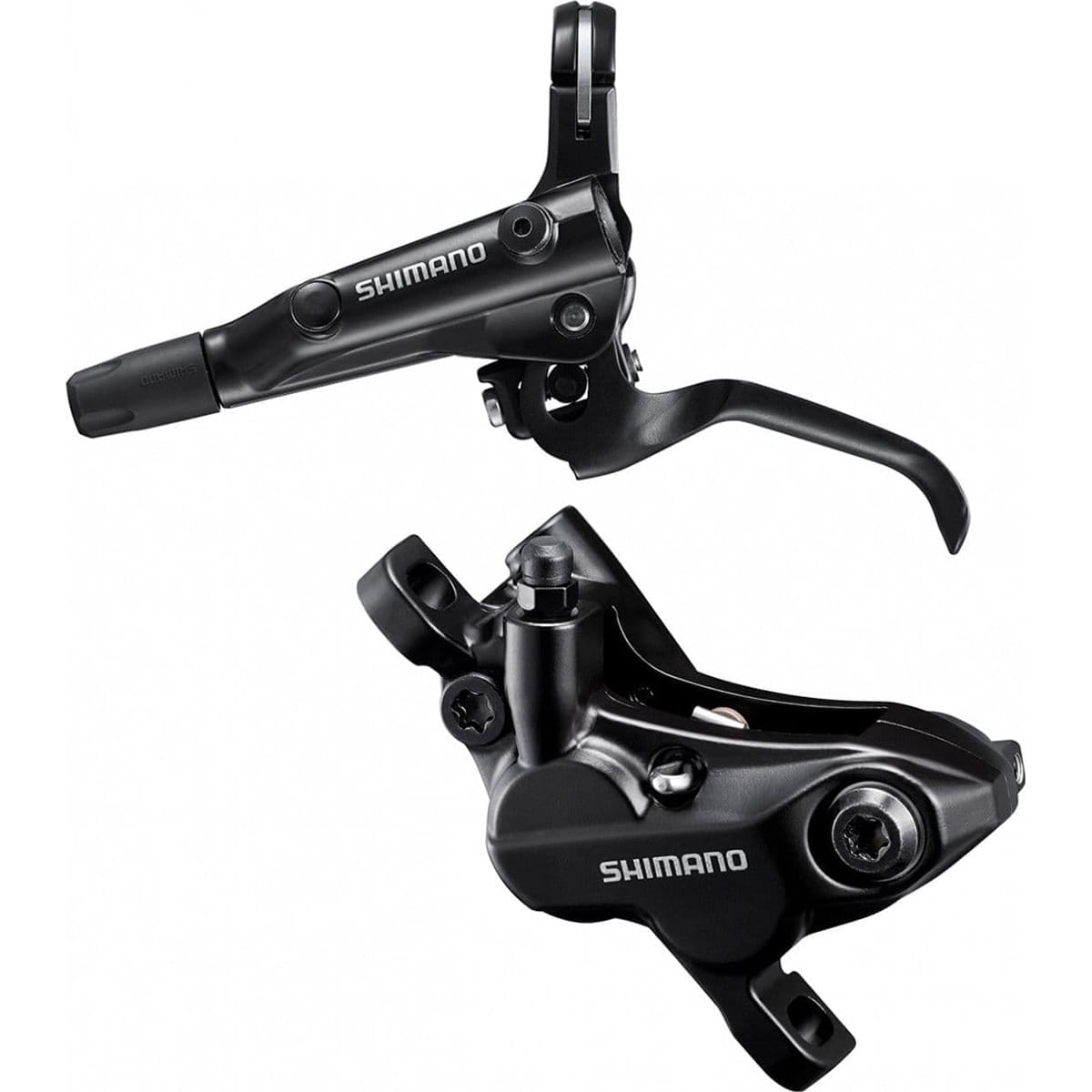

• SHIMANO MT520 4 Piston Front Brake J-KIT Without Disc
1 1
SHIMANO

SHIMANO MT520 4-Piston Front Brake J-KIT

Réf. fabricant : EMT501EJLFPRA100
The SHIMANO MT520 Front Brake is designed to deliver exceptional braking performance, combining elegance and reliability. The BL-MT500 lever integrates SERVOWAVE technology, offering high... Read more

Recommanded price* : 147,99 €

109,90 €
109,90 €
View full details

Description

The SHIMANO MT520 Front Brake is designed to deliver exceptional braking performance, combining elegance and reliability. The BL-MT500 lever integrates SERVOWAVE technology, offering high braking power and I-SPEC II compatibility for optimal integration.

The robust master cylinder ensures smooth operation and high reliability, suited to all disciplines, from Cross-Country to trail. The 4-piston design instils confidence with impressive braking power and increased contact area, offering controllable modulation and immediate responsiveness.

SERVOWAVE technology enables rapid pad contact and a linear response, guaranteeing smooth and consistent braking. The elegant and durable master cylinder design, along with the thermal insulation of the pads and pistons, ensures consistent performance and outstanding durability, enhancing the riding experience.

► Manufacturer Manual

Ref: 7993004523686

Informations techniques

╝KEY FEATURES
► Versatility: Suitable from XC to Trail with great reliability and rigidity
► Braking Power: 4-piston calliper for increased reactivity and confidence
► Controllable Modulation: Quick pad contact and efficient thermal management
► Durability: Durable design for consistent and reliable braking
► J-KIT: The J-Kit system makes it easier to route the brake hose inside the frame, with a simplified connection to the calliper and a pre-fitted olive, for quick and easy installation
► SERVOWAVE ACTION: The SERVOWAVE lever allows quick pad contact with the rotor, then multiplies braking power for increased control with less lever movement
► REACH ADJUST: The brake lever with reach adjustment allows the distance between the grip and the lever to be set, adapting to all hand sizes and riding preferences for optimal braking and gear shifting
► I-SPEC II: Simple structure with a narrow clamp band for the brake lever, offering more space on the handlebar and a clean look
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring a quick and clean bleed thanks to a one-way oil path and a funnel-shaped tool

┘GENERAL
• Series: Groupset Independent
• Manufacturer Reference:
_Lever: BL-MT501
_Calliper: BR-MT520
• Weight:
_Lever: n/a
_Calliper: n/a
_Lever/Calliper/Hose Assembly: n/a
• Materials:
_Lever: Aluminium
_Calliper: Aluminium
_Pistons: Ceramic┌

┘SPECIFICATIONS
• Brake Lever/Gear Shifter Integration: I-SPEC II
• Lever Length: 2 Fingers
• Number of Pistons: 4
• Calliper Mount: PostMount (PM)
• Pads: D03S-RX, D02S-MX
• Recommended Brake Fluid: Shimano Mineral Oil
• Hoses: 1000mm - SM-BH90-SS - Straight Fitting
• Ø Min./Max. Disc: 160mm to 220mm (combined with required adapters)
• Recommended Disc: SM-RT70 (not included)
• J-Kit Pre-bleed: Yes┌
;

Informations prix

*Supplier recommended retail price in February 2024
