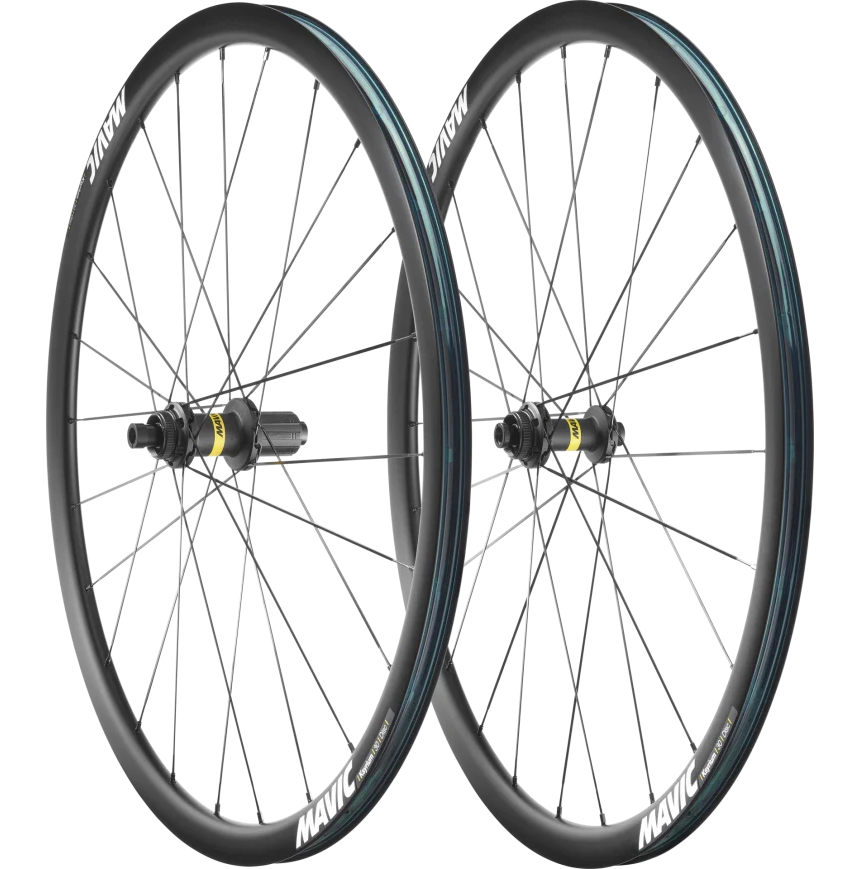

MAVIC KSYRIUM 30 DISC Tubeless Ready Wheelset (Center Lock)

The MAVIC KSYRIUM 30 DISC Wheelset offers a high-performance model featuring renowned Mavic technologies and design, along with a refined finish.These aluminium wheels give... Read more
349,90 €
0,00 € 349,90 €
View full details

Description

The MAVIC KSYRIUM 30 DISC Wheelset offers a high-performance model featuring renowned Mavic technologies and design, along with a refined finish.

These aluminium wheels give a performance boost to any bike. They feature a wide internal profile that is both resistant and laterally stiff.

With its new rim profile, mounting and dismounting a tyre has never been easier. The UST Tubeless system requires no inner tube, meaning no friction. In addition, a larger air volume allows for smoother handling. The result: increased speed with greatly reduced rolling resistance.

The new Infinity hub platform optimises spoke lacing; carefully adjusted spoke tension delivers maximum power transfer. Its lightweight flat double-butted spokes ensure maximum durability and reliability.

Manufacturer Manual + Rim/Tyre Compatibility Chart

MAVIC Road Axle Adaptors Manual

MAVIC UST Tubeless Manual

Ref: 9842309693789

Informations techniques

┘GENERAL
Manufacturer Reference Front / Rear: F00079101 / R00079303
Pair Weight: 1796 g
Front Weight: 833 g
Rear Weight: 963 g
ASTM: category 2 (road and paths with jumps under 15 cm in height)
Maximum load: 120 kg (including bike weight)

┘RIM
Material: Maxtal
Height: 30 mm
Joint: SUP welding technique
Internal width: 19 mm
Drilling: traditional (24 holes)
Braking: disc
ETRTO size: 622x19
Tyre compatibility: Tubeless Ready / Tubetype
Maximum tyre size: width 62mm - max pressure 3.8Bar/55PSI

┘HUBS
Shell material: aluminium
Shell design: INFINITY
Disc standard: Center Lock® only
Axle material: aluminium
Axle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (included)
Freehub technology: Instant Drive 360
Freehub: Shimano HG road
Bearing technology: QRM automatic adjustment - sealed cartridge

┘SPOKES
Material: steel
Shape: straight, extra-flat, butted, anti-rotation
Nipples: steel, ABS, black
Lacing: 2-cross

┘KEY TECHNOLOGIES
► INSTANT DRIVE 360: The Instant Drive 360 system ensures immediate power transmission, with no inertia, proven reliability and quick tool-free maintenance;
► INFINITY: Infinity hubs ensure even spoke tension, providing stability, smoothness and durability, with no contact or parasitic noise, for simplified maintenance;
► QRM BEARINGS: Mavic's QRM technology uses high-precision double-sealed bearings, offering increased durability, low friction and minimal maintenance;
► UST SYSTEM: UST technology provides tubeless riding, reducing rolling resistance, improving comfort and grip, while reducing rim weight by 20g;

┘INCLUDED
User guide
UST rim tape fitted to the wheel
UST valve not fitted to the wheel
Front axle adapters: 12x100 convertible to 9x100
Rear axle adapters: 12x142 convertible to 9x135
Multifunction adjustment key with rear wheel

┘COMPATIBLE REFERENCES
Freehub body: convertible SRAM XD road (kit V2580101 sold separately)
Freehub body: convertible SHIMANO HG light road (kit V3850101 sold separately
Freehub body: convertible SHIMANO MS (kit V3990101 sold separately)
Freehub body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freehub body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
;
