MANITOU

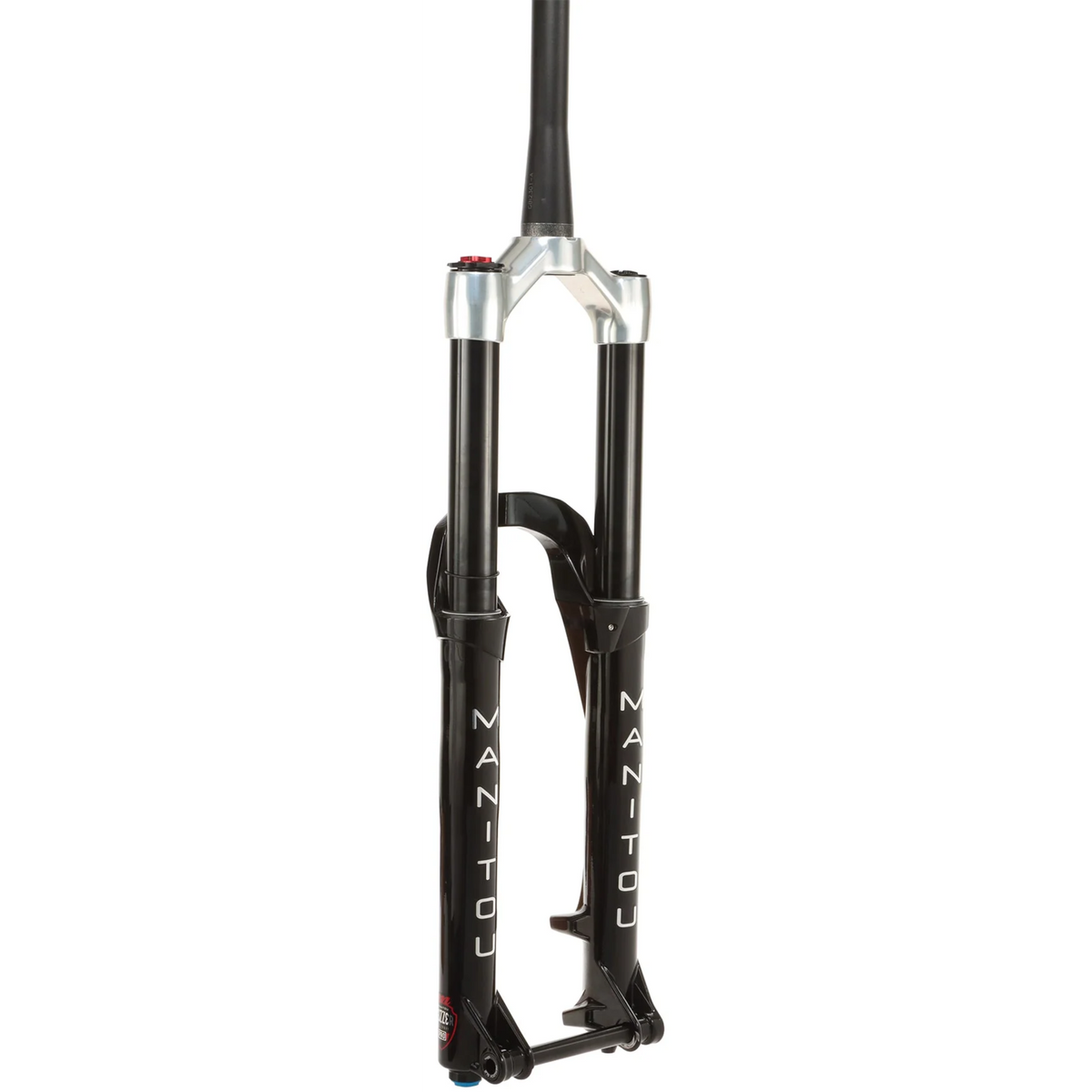

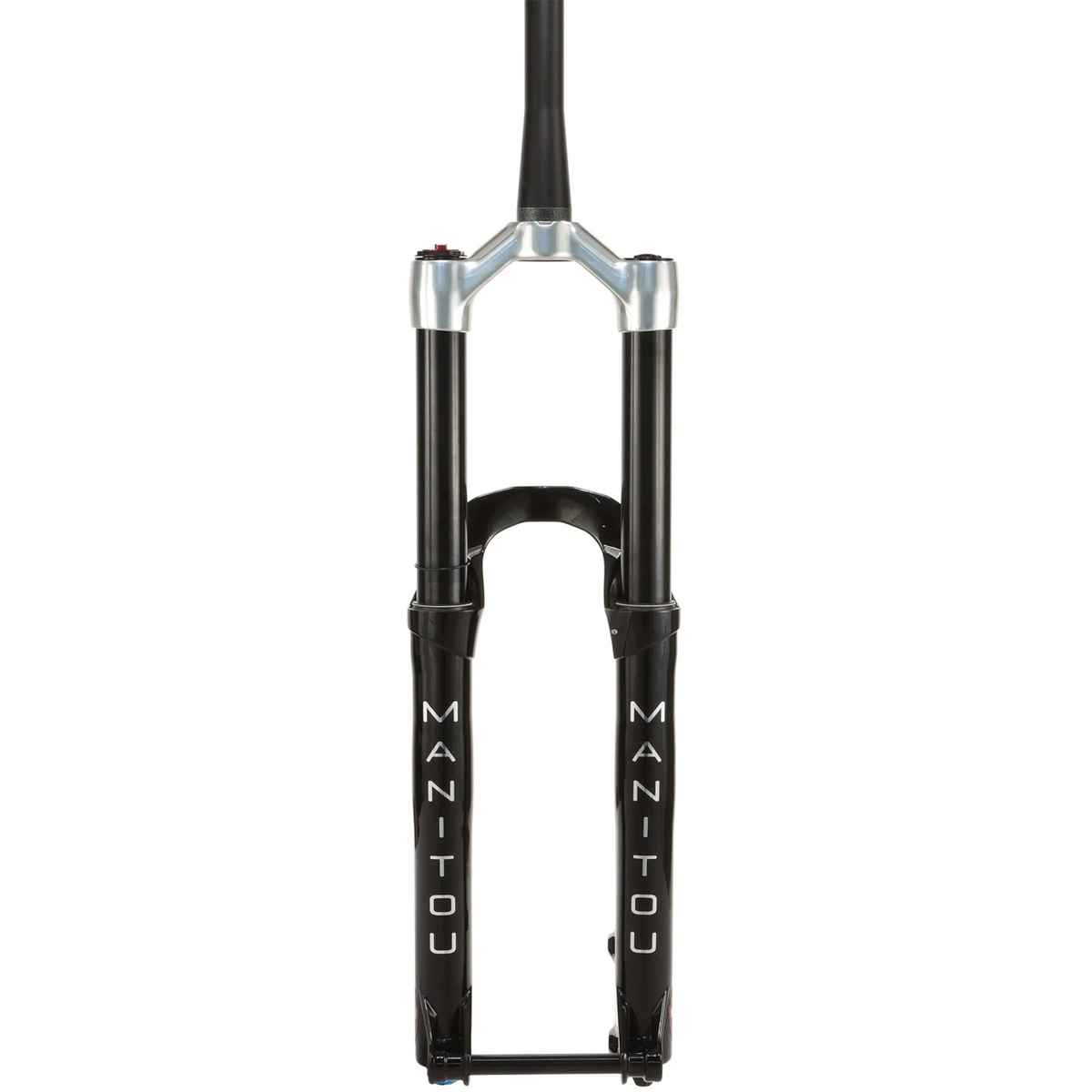

MANITOU Mezzer G2 Pro LT 29" 180 mm Tapered 15x110 mm Boost Fork – Black

Manufacturer reference: 191-42667-A002
The Mezzer LT Pro remains the lightest in its class, with a maximum travel of 190 mm, the widest travel adjustment range and ultra-simple... Read more

Recommended price* : 1.199,95 €

Regular price 1.099,90 €
Regular price Sale price 1.099,90 €
View full details

Description

The Mezzer LT Pro remains the lightest in its class, with a maximum travel of 190 mm, the widest travel adjustment range and ultra-simple adjustment, with all components included.

The Mezzer LT is 18% stiffer fore and aft and 9% stiffer torsionally than the Mezzer Pro/EXP chassis.
It supports a maximum permissible weight of 150 kg for ASTM 5-compliant use, making it ideal for high-powered e-bikes, bike parks or enduro, and prioritises maximum stiffness over low weight.


The Dorado Air Active Spring Piston air spring system with IRT is the most sophisticated and offers optimal adaptability.

The small coil spring supporting the Dorado Air piston gives the fork minimal breakaway force and exceptional responsiveness to changes in direction.

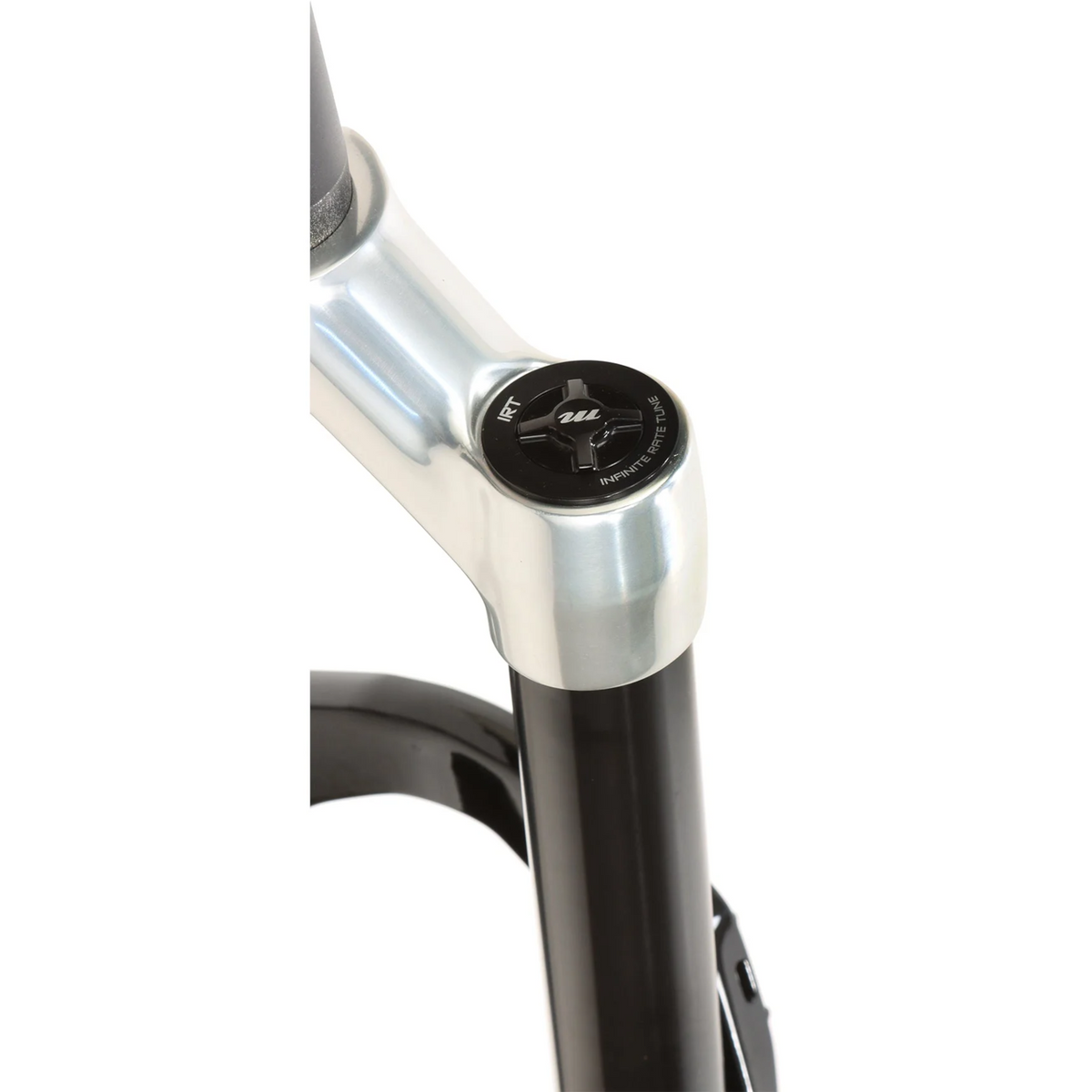

IRT allows precise air spring adjustment, providing unrivalled mid-stroke support.

Travel Adjustment Guide.

Setup Guide.

Ref: 16107312284028

Key features

Excellent terrain tracking from the first ride, thanks to precise factory alignment and fitting of the stanchions to the bushings.

Hydraulic bottom-out provides the feel of endless travel.

Improved stiffness to meet the demands of modern e-MTBs and aggressive enduro riding.

Improved breakaway sensitivity.

Travel is easily adjustable internally from 150 to 190 mm using the spacers supplied with the fork.

Technical information

Discipline: Enduro / e-MTB
Crown: Single
Wheel size: 29"
Front wheel axle: 15x110 mm (Boost)
Lockout: None
Colour: Gloss Black
Travel: 180 mm
Variable travel: Internally adjustable from 150 to 190 mm
Offset: 44 mm
Maximum rotor diameter: 223 mm
Minimum rotor diameter: 180 mm
Steerer diameter: Tapered 1.5"–1⅛"
Stanchion diameter: 37 mm
Brake mount: Post Mount
Fork height:
561 mm at 150 mm travel
Steerer length: 265 mm (can be cut down)
Steerer material: Aluminium
Stanchions: Straight-wall aluminium
Lower legs: Magnesium
Adjustable air volume: Yes

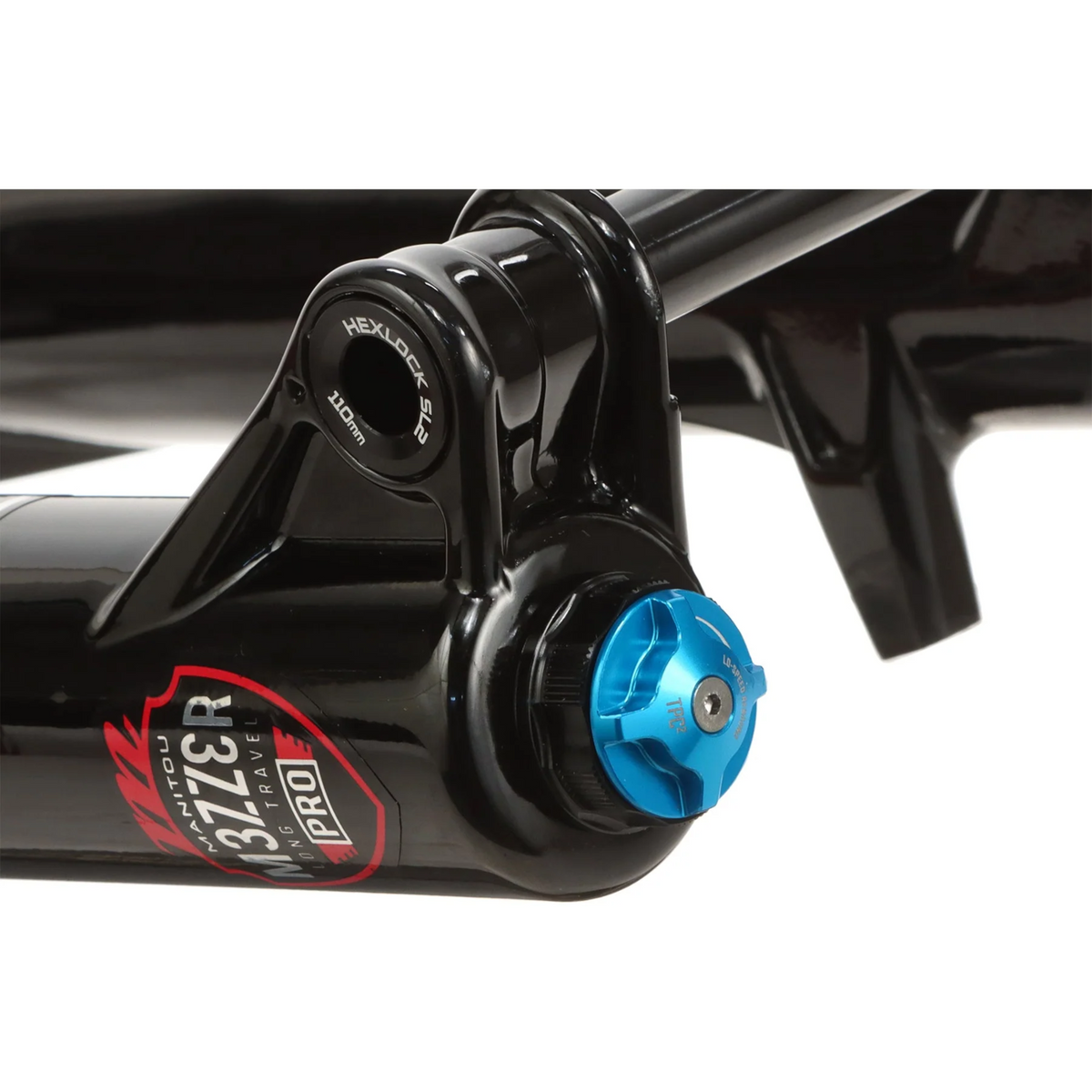

TPC2 rebound damper

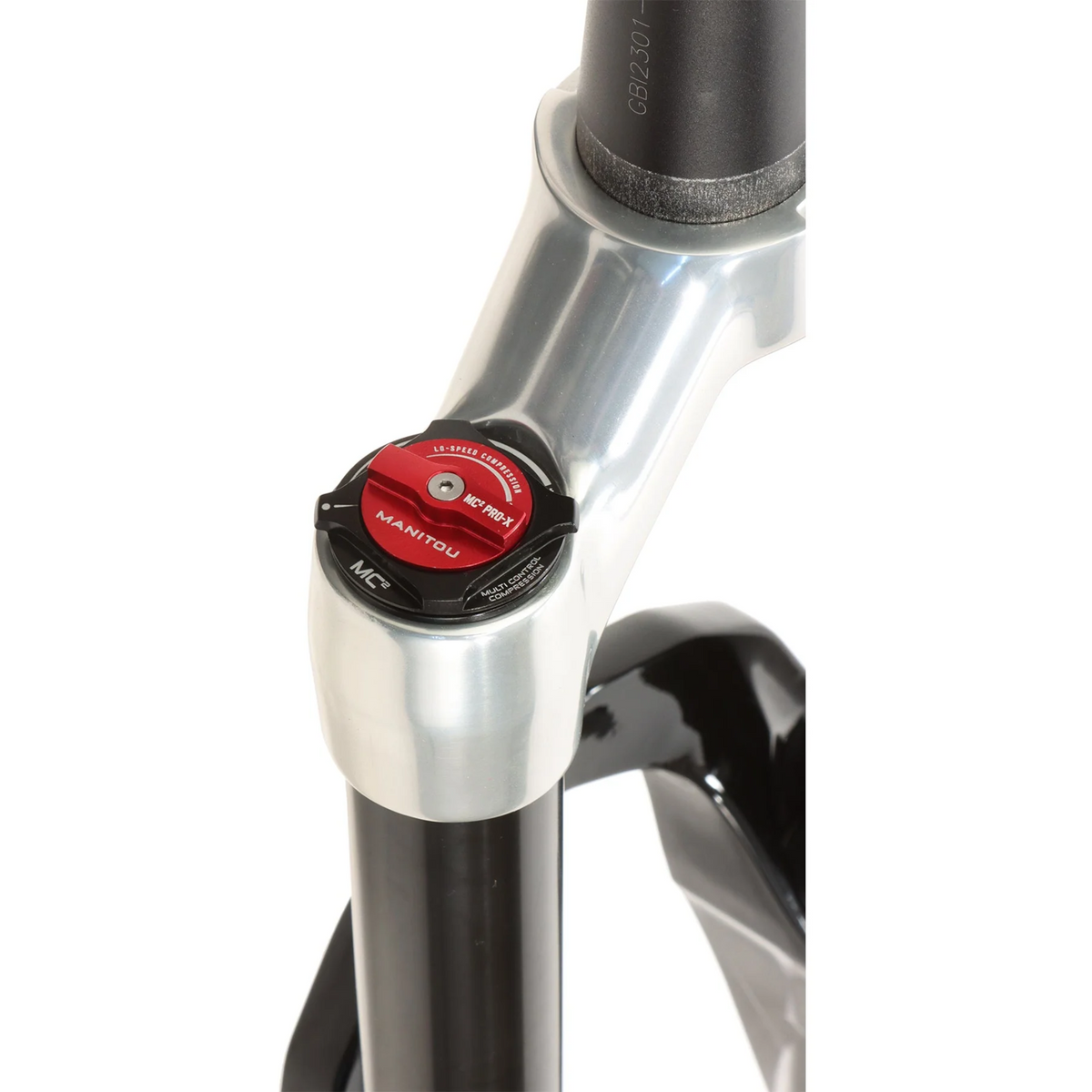

MC2 Pro-X compression damper


Low-speed compression adjustment: Yes
High-speed compression adjustment: Yes
Low-speed rebound adjustment: Yes
High-speed rebound adjustment: Yes
Preload adjustment: Yes
Progressivity adjustment: Yes, IRT technology
Spring: Air


E-MTB compatible
Compatible with short bolt-on mudguard
Tyre width clearance: 69 mm with mudguard
Includes TSR, mudguard and travel adjustment spacers.
