DT SWISS

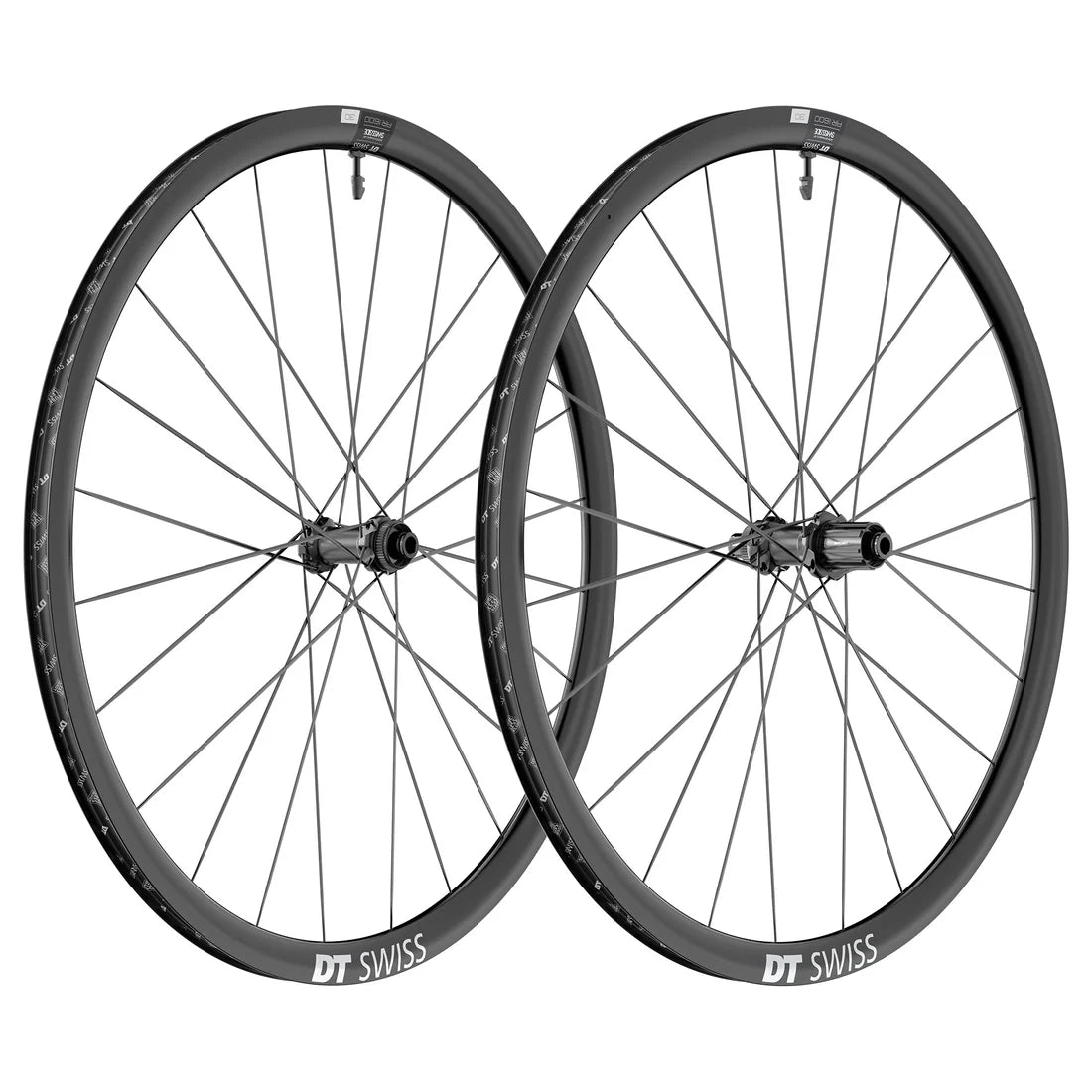

DT SWISS AR 1600 SPLINE 30 DISC Tubeless Ready Wheelset (Centre Lock)

The DT SWISS AR 1600 SPLINE 30 DISC Wheelset is designed to deliver an exceptional speed experience, inspired by the technologies of the high-end... Read more

Recommanded price* : 599,00 €

509,90 €
514,80 € 509,90 €
View full details

Description

The DT SWISS AR 1600 SPLINE 30 DISC Wheelset is designed to deliver an exceptional speed experience, inspired by the technologies of the high-end carbon wheels used by professionals.

Its design optimises aerodynamics through the use of aero spokes and hidden nuts. The 350 hub, featuring the Ratchet freehub system, ensures instant power transfer and exceptional responsiveness with every pedal stroke.

Thanks to Aero+ technology, it reduces drag whilst improving handling, ideal for riding fast and efficiently.

The AR 1600 SPLINE 30 DISC is the ideal choice for those looking to push their limits.

Ref: 9842666668381

Informations techniques

┘GENERAL
Category: Road
Pair Weight: 1,752 g
Front Weight: 828 g
Rear Weight: 924 g
Max Load: 110 kg
ASTM Classification: 1
Recommended for E-Bikes: No
Manufacturer Reference Front / Rear: WAR1600AIDXSA20783 / WAR1600NIDISA20784

┘RIM
Material: Carbon
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 30mm
Internal Width: 20mm
External Width: 24mm

┘HUBS
Axle System: 12mm Thru axle
Front Spacing: 100mm
Rear Spacing: 142mm
Disc Mount: Center Lock
Freehub Body: Shimano HG
Freehub: Ratchet System 36 SL
Hub Type: 350

┘SPOKES AND NIPPLES
Left Spokes: DT aero comp® t-head
Right Spokes: DT aero comp® t-head
Lacing Pattern: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► AERO RANGE: The DT Swiss Aero range maximises aerodynamics with profiled rims and innovative spokes, delivering high performance and exceptional stability, ideal for achieving optimal speeds;
► SPLINE: The DT Swiss SPLINE concept combines robust hubs, optimised straight-pull spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► AERO+: DT Swiss Aero+ technology optimises aerodynamics and stability by reducing drag and improving handling. It perfectly balances air resistance, pedalling efficiency and crosswind control;
► RATCHET: DT Swiss Ratchet freehub technology ensures fast and precise engagement thanks to its high-precision ratchet ring system. It guarantees efficient power transmission, high reliability and minimal maintenance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim Tape: 23mm tubeless tape
Valve: Black aluminium TL valve 26-35 mm / Valve protection sticker

┘CONVERSION REFERENCES

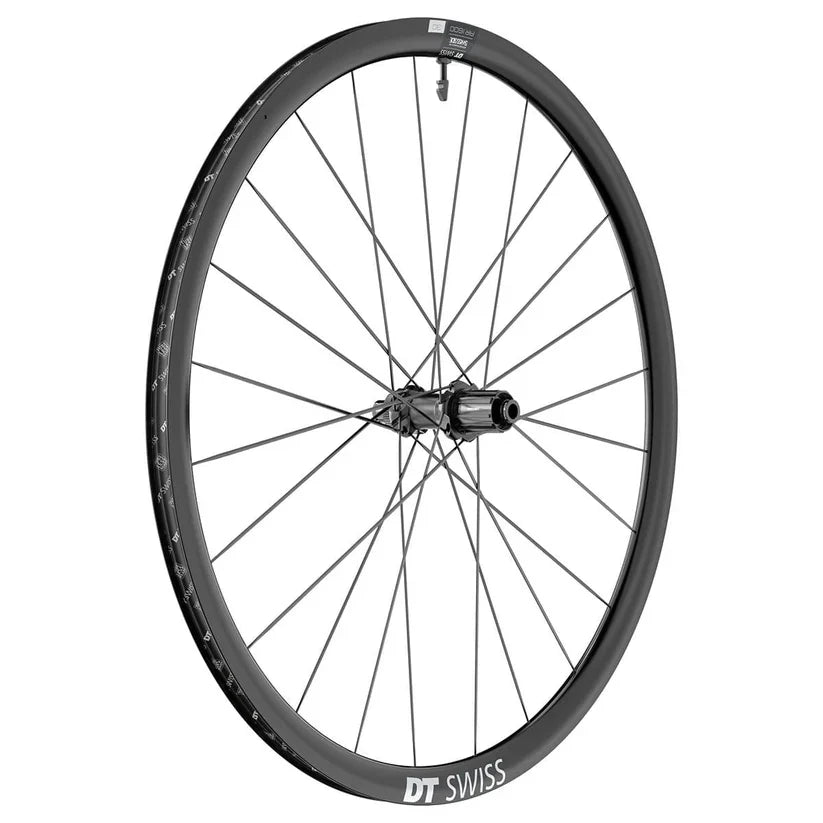

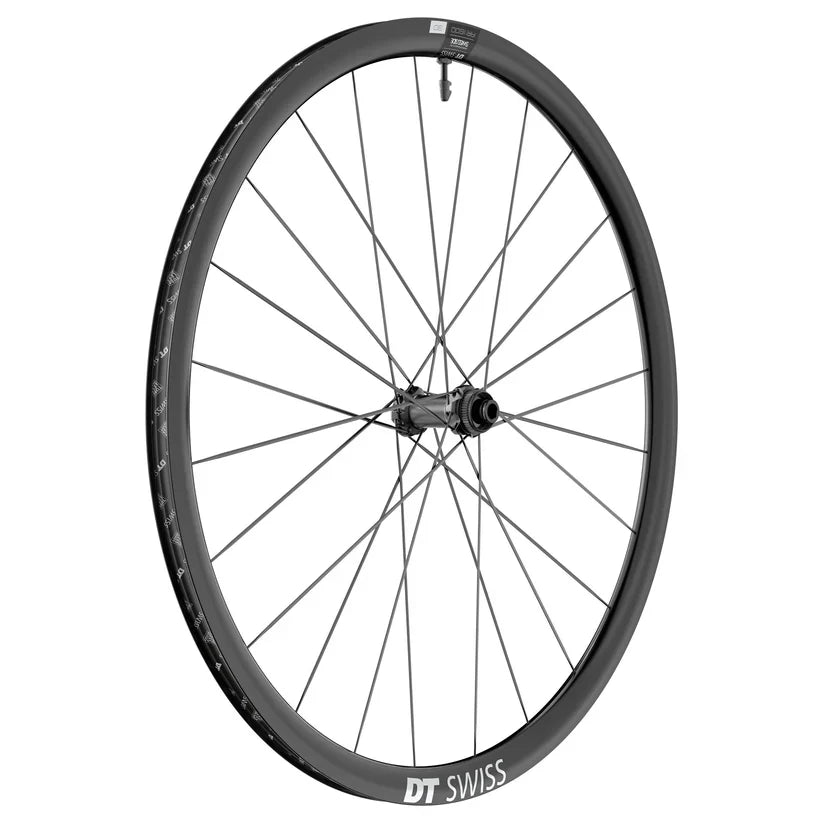

• Front Wheel
► Adapters for QR: HWGXXX00S3801S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX00S3803S;
► Adapters for TA15 (15x100mm): HWGXXX0004785S;
• Rear Wheel
► Adapters for Shimano HG / QR: HWGXXX0006383S;
► XDR / QR Kit: HWYABX00S8883S;
► XDR / 12x142 Kit: HWYABX00S7711S;
► Adapters for XDR / QR: HWGXXX00S5483S;
► Microspline / 12x142 Kit: HWYABL00S1961S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABL00S2992S;
► Campagnolo / QR Kit: HWYABX00S1296S;
► Campagnolo / 12x142 Kit: HWYABX00S7154S;
► Adapters for Campagnolo / QR: HWGXXX00S2766S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;

Informations prix

*Supplier recommended retail price in February 2024
