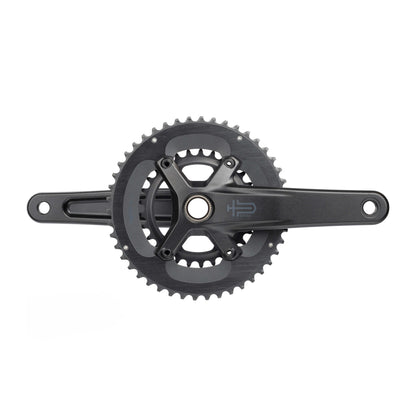

• MICROSHIFT SWORD 2x10-speed 46/29 crankset FC-G7000-46

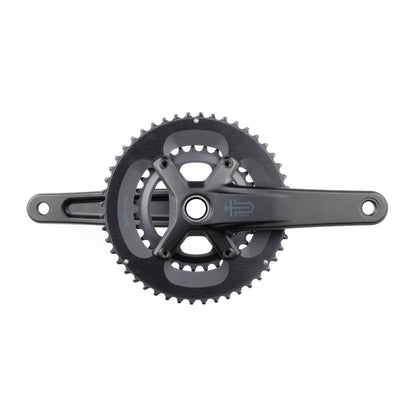

  • MICROSHIFT SWORD 2x10-speed 48/31 crankset FC-G7000-48
1 2
MICROSHIFT

MICROSHIFT SWORD 2x10-Speed Crankset

Manufacturer’s ref.: FC-G7000-46 / FC-G7000-48
The MICROSHIFT SWORD 2x10-Speed Crankset is the double-chainring crankset for the SWORD gravel drivetrain. Its 46/29 or 48/31-tooth chainring combination offers a very wide... Read more

Recommended price* : 134,99 €

129,90 €
129,90 €
View full details

Highlights

  • 46/29 or 48/31 double chainring: the widest gear range in the range, from fast flats to steep gradients.
  • Wide 47 mm chainline: the clearance needed for high-volume gravel tyres.
  • Aluminium large chainring and steel small chainring: low weight where it matters, durability where wear is greatest.
  • Standard 24 mm spindle: compatible with Shimano 86.5 mm Press Fit and 68 mm threaded bottom brackets.
  • Four crank arm lengths from 165 to 175 mm.
  • Convertible to a single chainring if your setup changes.

Description

The MICROSHIFT SWORD 2x10-Speed Crankset is the double-chainring crankset for the SWORD gravel drivetrain. Its 46/29 or 48/31-tooth chainring combination offers a very wide gear range, letting you ride fast on the flat without sacrificing a low gear for steep climbs.

Its wide 47 mm chainline is a hallmark of modern gravel cranksets, providing clearance for high-volume tyres. The large chainring is aluminium, while the small one is steel for durability. The 24 mm spindle fits Shimano 86.5 mm Press Fit or 68 mm threaded bottom brackets.

Which front derailleur should I pair it with? The SWORD FD-G7020 front derailleur, which is also designed for a 47 mm chainline.

Can it be converted to a single chainring? Yes, the crankset is designed for conversion from 2x to 1x.

Technical information

Models: FC-G7000-46 (46/29 teeth) and FC-G7000-48 (48/31 teeth).
Speeds: 10-speed, double chainring.
Chainring difference: 17 teeth.
Materials: aluminium large chainring, steel small chainring.
Crank arm lengths: 165 / 170 / 172.5 / 175 mm.
Chainline: wide 47 mm.
Bolt circle diameter (BCD): asymmetric 110/80 mm.
Spindle: 24 mm.
Bottom bracket: 86.5 mm Press Fit or 68 mm threaded, compatible with Shimano bottom brackets.
Weight: 925 g in 46/29 (172.5 mm crank arms). Weight of 48/31 not stated by the manufacturer.
Matching front derailleur: microSHIFT SWORD FD-G7020.
;

Pricing information

*Recommended retail price from supplier in September 2026
