WOLFTOOTH

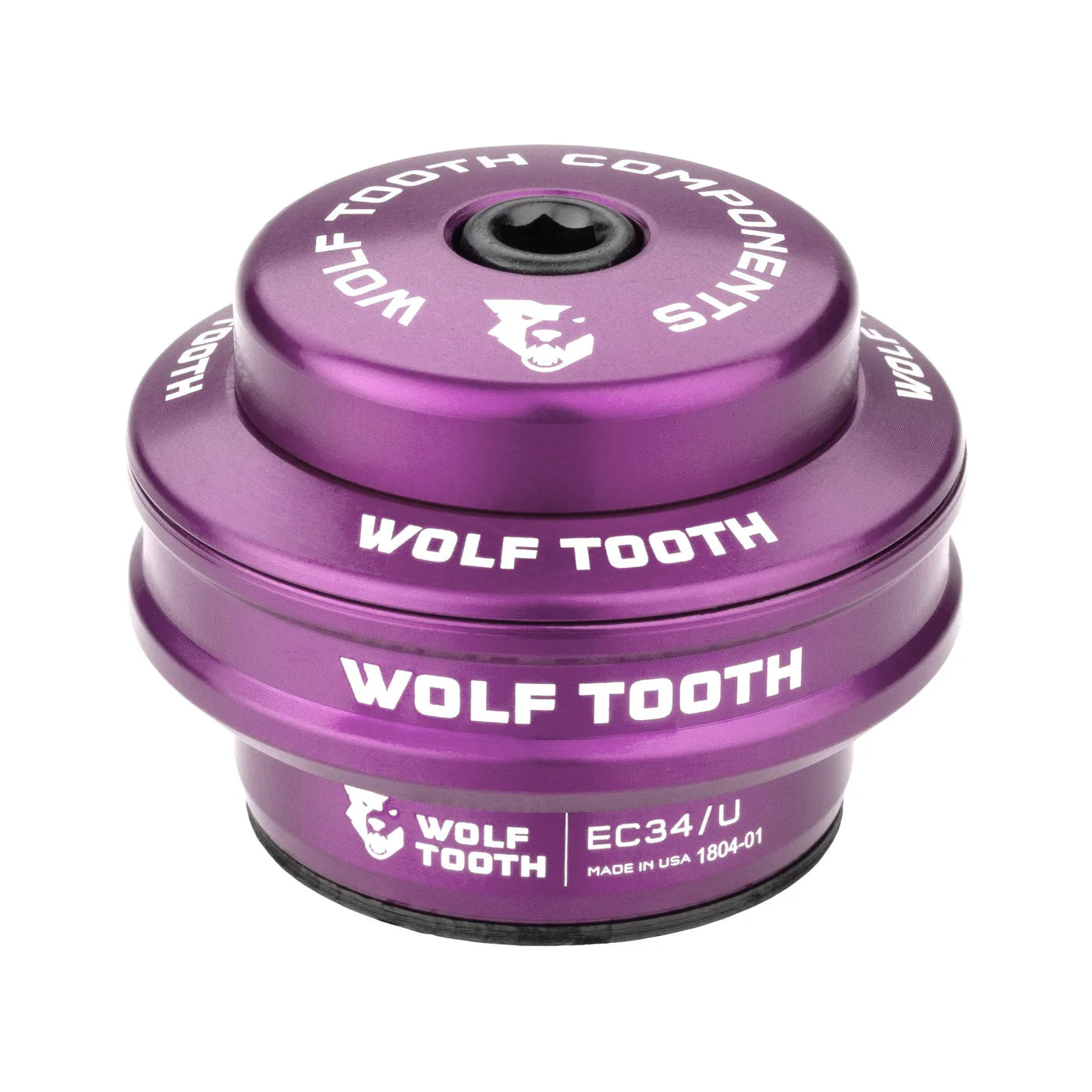

WOLF TOOTH PERFORMANCE 1"1/8 EC34 Stack 16 mm Upper Cup for External Headset Purple

Réf. fabricant : EC34U-5MM-PRU-B
Designed for frames equipped with an external headset cup, the WOLF TOOTH PERFORMANCE 1"1/8 EC34 Upper Cup combines lightness, precision and durability. Machined in... Read more

Recommanded price* : 64,99 €

54,99 €
54,99 €
View full details

Description

Designed for frames equipped with an external headset cup, the WOLF TOOTH PERFORMANCE 1"1/8 EC34 Upper Cup combines lightness, precision and durability. Machined in the USA from aeronautical 6061 aluminium, it guarantees a precise fit and excellent resistance for reliable handling on all terrain.

This upper cup integrates an Enduro chrome steel bearing with black oxide treatment, renowned for its smoothness and longevity. Its triple seal system, comprising an O-ring around the steerer and a custom moulded upper seal, effectively protects the bearing against water, dust and contaminants.

Supplied with an ultralight top cap integrating a spacer, an aluminium bolt and a star nut, this EC34/28.6 version offers a top cap height of 5 mm for a total stack of 16 mm. Replacement components are available to facilitate maintenance and extend the lifespan of the headset.

Ref: 16038441255292

Informations techniques

Position: High (Upper)
S.H.I.S. Standard: EC34/28.6
Steerer compatibility: 1"1/8 (28.6 mm)
Frame compatibility: Head tube Ø inner diameter 34 mm (EC34)
Headset type: External Cup (EC)
Top cap height: 5 mm
Total stack: 16 mm
Cup material: CNC-machined aeronautical-grade 6061 aluminium
Bearing: Sealed cartridge Enduro in chrome steel with Black Oxide treatment
Sealing:
O-ring around the steerer
Moulded upper seal for enhanced bearing protection
Triple sealing system
Bearing angle: 36° x 45°
Top cap bolt tightening torque: 2 to 3 Nm (lightly grease the thread)
Included items:
Ultra-light top cap with integrated spacer
Aluminium bolt
Star nut (for aluminium or steel steerers only)
Note: For a carbon steerer, use an expander (compression plug) sold separately.
Manufacturing: Machined in the USA.
;

Informations prix

*Supplier recommended retail price in February 2024
